Description：

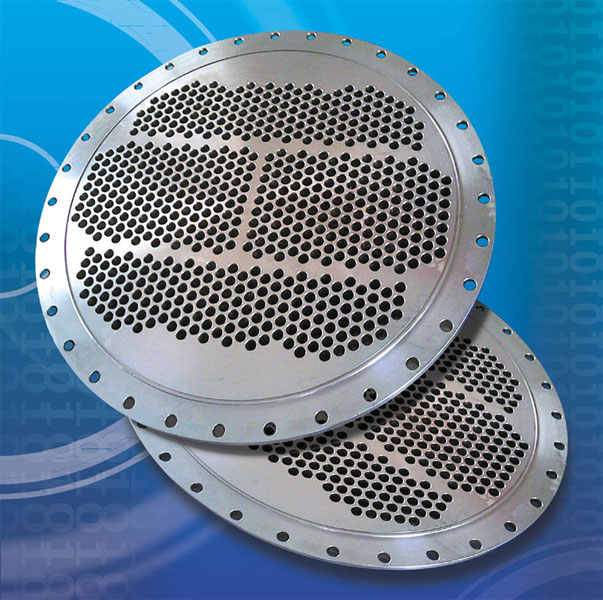

1) Tube sheet

2) Size: diameter from 80 to 2500mm

3) Class: according to customers’ request

4) Stainless steel , carbon steel

Material include: 304, 304L, 316, 316L, 321

C22.8, A105, SA350 LF2, P280GH, P250GH, Q235B, Q345E

5) Standard: ASME, ANSI, API, DIN, BS, EN, JIS, JPI

6) ISO 9001 certificate, 3.1B, JIS, ABS, BV, DNV certificates provided

7) Delivery: according to the quantity

8) Packing: according to the customers’ request

We manufacture shaft forgings for wind power and vessel.

I.Free Forging Used for Metal Pressure Vessel

MetalPressure Vessel is a kind of metal sealed device used for placing gas orliquid, which bears certain pressure. Based on theroles in the process, it can be divided into four majorcategories, including reaction vessel, heat exchangingvessel, separating vessel and storage vessel. Metal pressurevessel body mainly consists of 8 parts, including cylinder body, seal head,flange, sealing elements, bores and pipe connections, bearings,safety devices and instruments. It can be widely usedin petrochemical, energy, scientific research andmilitary industries.

II. Parts and Components ofTurbine

Turbineis a kind of rotary prime mover which can converse the steam thermal energy into mechanical work. It is widelyused for industries such as metallurgical, chemical, ship, electricpower and other industries. Turbine mainly consists of two parts, includingrotary part and stationary part. The rotary part is also known as the"rotor", including main shaft, impeller, moving blades, couplingsetc.; The stationary part includes steam inlet part, cylinder,partitions and static cascade, steam seal andbearings. At present, the company mainly producesthe ring of the turbine.

III.Spherical Forging used for Large-Scale Valve

IV.Main Shaft used for Wind Power Industry

V.Shaft used for Ship
